EDER - WINCH 1200 B
EDER - WINCH 1200 B
With an engine output of 1.7 kW and a pulling capacity of up to 1,200 kg, we are proud to present the EDER – Winch 1200 B together with STIHL. This pulls more than 90 times its own weight (12 kg) and can be easily carried by hand to any location by using lightweight synthetic ropes.
Capacity
1.200 kg
speed
13 m/min
Weight
12 kg
battery motor
STIHL battery motor (Battery running time: ca. 15-20 minutes at maximum load)
Power
- 1.200 kg tractive force in direct pull at a pulling speed of at 13 m/min
Operation
The EDER – Winch 1200 B is controlled outside the danger zone. By pulling lightly on the rope, the throttle trigger of the control unit is moved and the winch starts to pull.
Rope brake
Maximum safety thanks to the rope brake! As soon as the operator releases the rope, the winch stops and the rope is clamped in the brake. This prevents the load from slipping back unintentionally. The brake can, however, be released on purpose.
Spare part list
Select by serial number and download.
Accessories

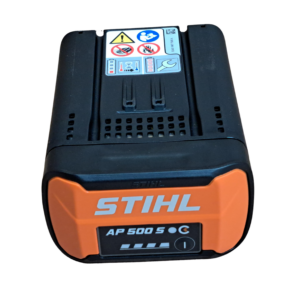

STIHL accu 500 S
suitable for EDER - Winch 1200 B and EPC- 240- 11 B.
STIHL AL 500
quick charger suitable for STIHL 500S and 300S accu
3-fold pulley
4 kg, Capacity: 12,6 t,
max. Rope diameter: 13 mm
3-fold pulley
4 kg, Capacity: 12,6 t,
max. Rope diameter: 13 mm
Rope with thimble for EDER - Winch 400, 500, 1200
in 50 and 100 m, breaking load 3600 daN Ø 9.5 mm
Rope with thimble for EDER - Winch 400, 500, 1200, 1200 B
in 50m ,100m and 200m, breaking load 3600 daN
Ø 9,5 mm
Rope bag for the ropes
capacity: 45 L
max. Load capacity: 19 kg
If you have any other questions about using our accessories, just contact us at:
- +49 (0) 5331 / 90216-0
- vertrieb@eder-maschinenbau.de
Frequently asked questions
Video: Starting the EDER – Powerwinches
Download instructions as PDF here
See Accessories , the rope with the 9.5 mm diameter. Available in 50m or 100m.
Special fuels, 1/50 mixture or 1/30 mixture if the oil is poor.
