Accessories
For all EDER - Winches
The lightweight, portable winches are suitable for synthetic ropes of any length. The equipment has all the functions such as pulling, holding and releasing the load and they are controlled from a safe distance from the equipment.
Here you will find the necessary accessories for your EDER – Winches, from the rope to the transportable backpack or for optimizing the pulling force.
All accessories for our EDER - Winches at a glance

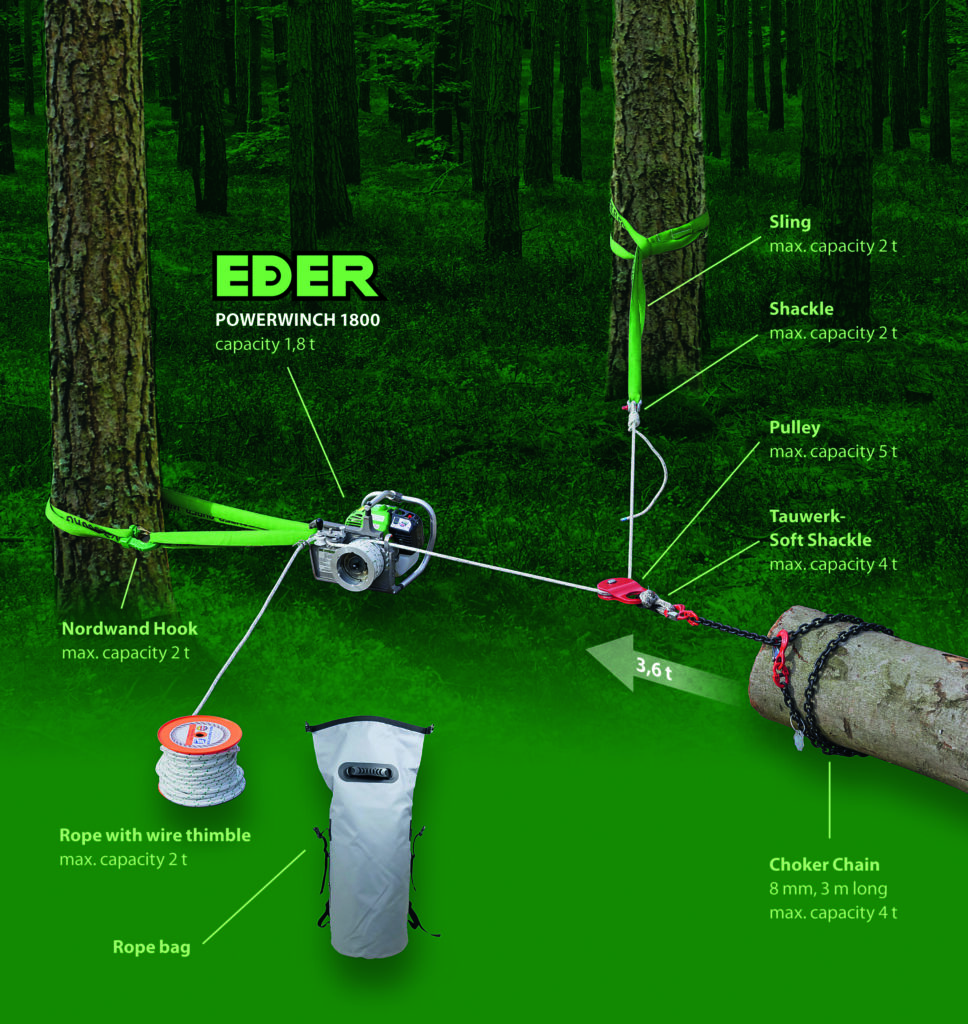

Contains all the components required for direct pulling in the ground hoist or for doubling the pulling force, as well as for transporting the EDER – Winches.
Rope soft shackle
to. Tractive force 4 t
Round sling
perm. Tractive force 2 t
Choker chain
8 mm, 3 m long perm. Tractive force 4 t
Shackle with threaded pin
perm. Tractive force 2 t
Nordwand hook
perm. Tractive force 2 t
Rope with thimble for EDER - Winch 1800
in 50 and 100 m, breaking load 5100 daN Ø 13 mm
Rope with thimble for EDER - Winch 400, 500, 1200
in 50 m,100 m and 200 m, breaking load 3600 daN Ø 9.5 mm
Rope bag for the ropes
capacity: 45 L
max. Load capacity: 19 kg
EDER - Winch Bag for the winches
capacity: 100 L
max. Load capacity 25 kg
STIHL accu 500S
suitable for the EDER - WINCH 1200 B EPC- 240-11 B
STIHL Al 500
quick charger suitable for STIHL Akku 500S and 300S
EDER - pulleys
The EDER single, double or triple deflection pulleys for the ground hoist can be used in combination with the EDER – Winches to create an extremely powerful rope system that can be easily carried by hand.
The EDER – pulleys are characterized by attachment points on both sides. When pulling off hangers, a deflection pulley can be installed as an additional “loose pulley” in the rope strand. This means that the pulling force can be increased by a factor of up to 7 (with a triple deflection pulley) or 5 and 3 (with double and single deflection pulleys) depending on the deflection pulleys used. With an appropriate setup, a tractive force of 12.6 tons can be achieved with our EDER- WINCH 1800.
1-fold Pulley
1,9 kg incl. shackle, Capacity: 5,5 t, max. Rope diameter: 9 mm - 13mm
2-fold pulley
2.6 kg incl. shackle, Capacity: 9 t., max. Rope diameter: 9 mm - 13 mm
3-fold pulley
4 kg incl. shackle, Capacity: 12,6 t, max. Rope diameter: 9 mm - 13 mm
Pulley Steel
2,7 kg incl. shackle, Capacity: 3,6 t, max. Rope diameter: 9 mm - 13 mm
